2-Coating system for petrochemical equipment and facilities2

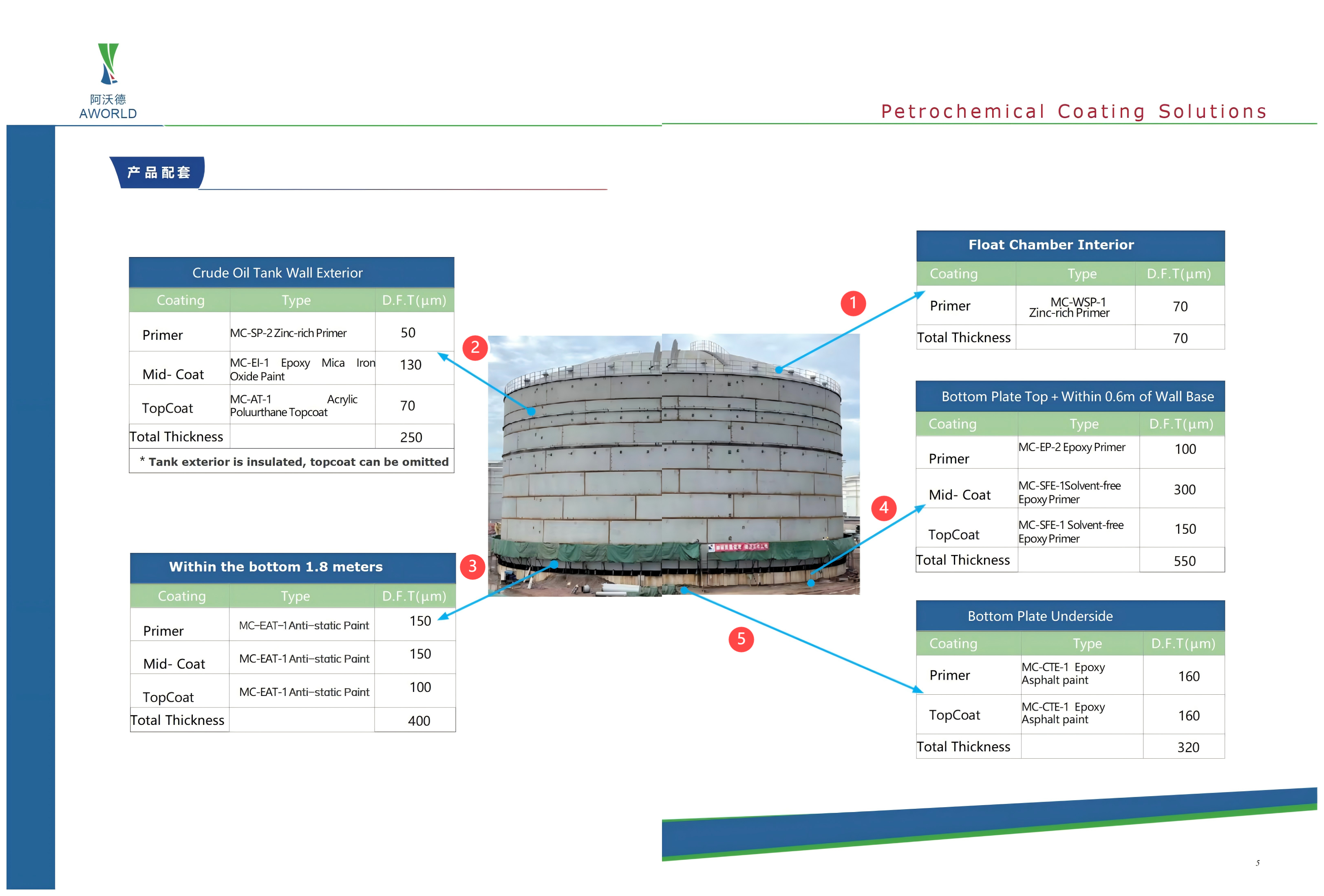

    ① Coating System for the Float Chamber Interior of the Storage Tank

         Primer：MC-WSP-1Zinc-rich Primer

    ② Coating System for the Crude Oil Tank Wall Exterior of the Storage Tank：

         Primer：MC-SP-2 Zinc-rich Primer

         Mid- Coat：MC-EI-1 Epoxy Mica Iron Oxide Paint

         TopCoat：MC-AT-1 Acrylic Poluurthane Topcoat

     ③ Coating System for the Within the bottom 1.8 meter of the Storage Tank

          Primer：MC-EAT-1 Anti-static Pain

          Mid- Coat：MC-EAT-1 Anti-static Pain

          TopCoat：MC-EAT-1 Anti-static Pain

       ④ Coating System for the Bottom Plate Top＋Within 0.6m of Wall Base the Storage Tank

            Primer：MC-EP-2 Epoxy Primer

            Mid- Coat：MC-SFE-1Solvent-free Epoxy Primer

           TopCoat：MC-SFE-1 Solvent-free Epoxy Primer

        ⑤ Coating System for Bottom Plate Underside the Storage Tank：

             Primer：MC-CTE-1  Epoxy Asphalt paint罐底板下表面

             TopCoat：MC-CTE-1  Epoxy Asphalt paint
